Obsidian CSS Inspector Workflow

Obsidian CSS Inspector Workflow

This was originally called “Obsidian CSS Quick Guide” but it ended up being more focused on the inspector. As a retrospective change to help people use this as a resource, it has been renamed. – FireIsGood

Hi friends! CSS in Obsidian can be confusing to get into, so this is a guide to get you started with information on the tools, methods, and some background knowledge!

Let’s get started by looking at how you can look behind the curtain of Obsidian’s visuals.

The Developer Console

Obsidian is technically like a website. As such, you can view the source like any other browser.

While you are inside the Obsidian window, you can press ctrl+shift+i to bring up the developer console on the right. It’s a very scary, text-filled rectangle.

It is important to note that any changes you here make are not saved which is why we make CSS snippets. You can mostly undo anything with ctrl+z when testing. If you really messed up, click into the console area and press f5 to reload Obsidian.

The developer console is the basis for how you can view classes and edit the CSS to test themes. You can resize it by dragging the left edge and it will change in layout past a certain width.

As seen normally

At a certain width, it changes form!

I personally don’t like the changed form as it’s a bit harder to read some CSS. To make it always stay split horizontally, you can go to the gear at the top right and change the Panel Layout from auto to horizontal. I will be using this for the guide.

To close the developer console at any time, you can either press ctrl+shift+i again or click the top right x button.

Anatomy of the Developer Console

The developer console is a very information-dense block, but most of the time the visuals aren’t relevant to where you’re looking. Let’s look at the general areas.

The main sections

The elements are all the elements that make up Obsidian. There’s a lot of stuff that doesn’t matter to you if you only care about scenes so you can mostly ignore what’s up here until you’ve selected something as you’ll see later. Hovering any elements here will show a highlight of them in the app.

The styles are the CSS selectors and declarations that make Obsidian look cool. We can see a bunch of them at the bottom. Notably, this bottom section entirely depends on what you selecting in the elements section above.

You can drag the area seen in the picture to make the styles section larger or smaller.

Selecting Elements

While you could go in and open all the carats to find your element, there’s a much faster way.

The most important tool you have here is the element selector at the top left. You can click on it or press ctrl+shift+c to pull it up. With this tool, you can hover a part of the app to see it in the elements menu and click to select it. While the tool is active, you can also see some basic information.

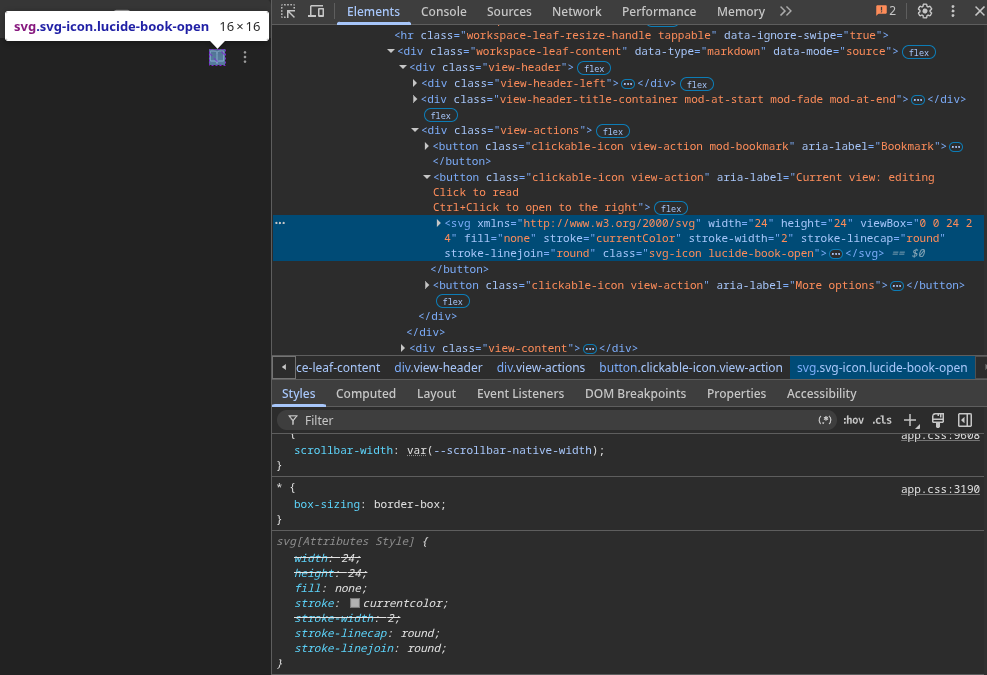

Here’s what it looks like when you hover an element:

Element selector in action!

Once you actually click on the element, the basic info and highlighting goes away. The styles section should be on the “Styles” tab, now showing you the actual styles on that element.

The styles

Almost all elements will have some selected styles and inherited styles. I won’t go in depth about CSS selectors as that’s a massive topic, but you can note that our styles show up here.

It is important to note that elements for Editing and Reading modes are different.

An Aside on Classes

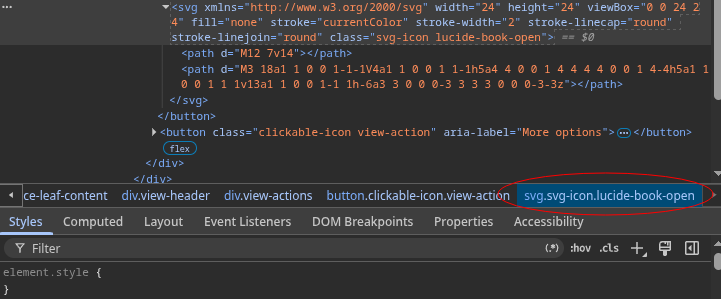

On the element, you can see any classes associated to it. These can be selected in your CSS snippet. You might also want to look upwards to parent elements for more selectors.

Some classes

The Computed Tab

Other than the “styles” tab in the Styles section, you can see every style that is affecting an element in the “computed” tab.

The computed tab

In this tab, you can see the box model of the element (look that one up for more info) and all the applied styles. You can open the carats to see where these styles come from and click the arrow to go to that style in the “styles” tab. This is very helpful when finding which element has the background-color added.

Testing States

Even if you can target an element, its styles for being hovered or selected might not show up! In this case, we can use the Toggle Element State part of the styles section. For this example, let’s say you want to pretend you’re hovering a link in reading mode.

Hovering a link

Addendum

Now you should have a better grasp on the basics of looking around at the elements and their classes. There’s a whole world of writing the CSS, but I hope this helped you poke into debugging and exploring the elements.

I took many steps from Getting comfortable with Obsidian CSS so check that one out as well.

This guide was made by FireIsGood#0733 on Discord. Feel free to share! If you would like to learn some more, check around on the Obsidian forums or come hang out in the #appearances channel on the Obsidian Members Group Discord.

Some random helpful links:

35 Likes

Adding a note here for any Mac users: the keyboard shortcut for toggling the developer console on macOS is Command+Option+i.

(I also always forget it and have to remember by trial and error, so maybe typing this comment will help me finally remember!)

3 Likes

I’ve made my own system to edit CSS files, but I recently discovered the CSS Editor (@github) plugin by @Zachatoo which adds the possibility to create, edit and delete CSS snippets from within Obsidian in a view with CSS styling. I just wanted to boost this plugin a little, as it might be a good way for many to start tinkering with CSS snippets.

Just remember to assign hotkeys to the various commands, and you’re good to go!

3 Likes

On that note, is there some way to export all of Obsidian’s current appearance to a master css file?

(Use case: I want to use Obsidian on a system where I can’t install any plugins/themes but I want the appearance to match that of my daily-driver system as much as possible, and I can get a css file to it.)

Not to diminish the hard work that theme developers put into themes, at all, but themes are basically massive snippets. So, I think you can get most of the way there by making a copy of your theme’s theme.css file, putting it in {VAULTNAME}/.obsidian/snippets/ on the locked-down system, and enabling it.

If you’ve made settings changes using Style Settings, you’ll have to make a list of those changes and adjust the CSS classes accordingly or add a few things, but it’s doable.
