Hi
I’m using Obsidian since a while now but I’m just discovering themes. After some testing, I chose Minimal…
What I’m trying to do
I’m searching for a way to pdf-export those nice alternate checkboxes.
Things I have tried
I found two interesting trails to follow but my knowledge in CSS is not sufficient to distinguish what’s not working exactly :
- there is academic-pdf-export which takes the right direction I want to follow, but which is replacing checkboxes by “•”
- there is print.css which works nicely too but the output is not what I’m looking for
→ Hence I experimented on the basis of academic-pdf-export but I can’t seem to find what’s not allowing me to print alternate checkboxes.

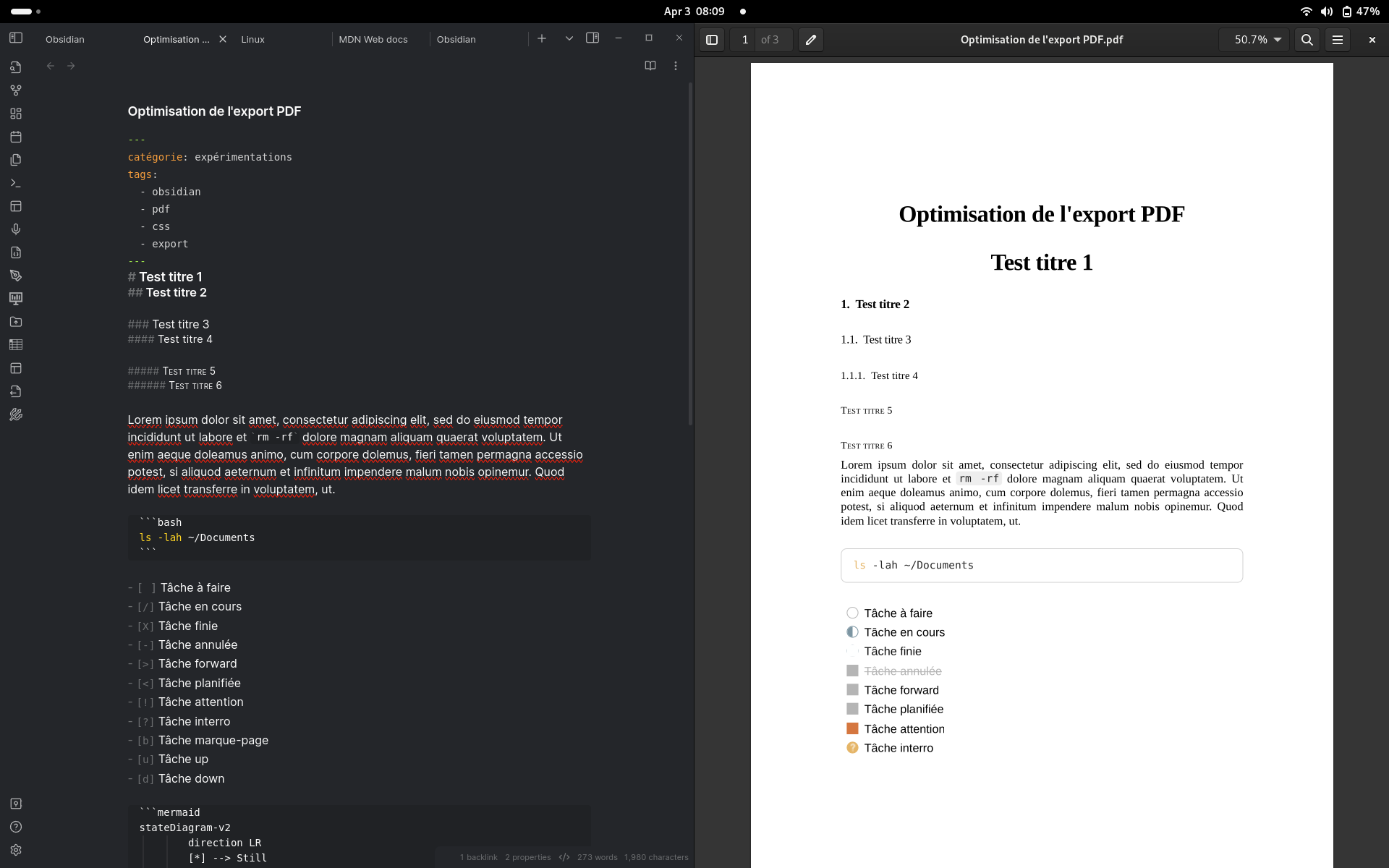

Here is the ouput with minimal theme and no custom CSS :

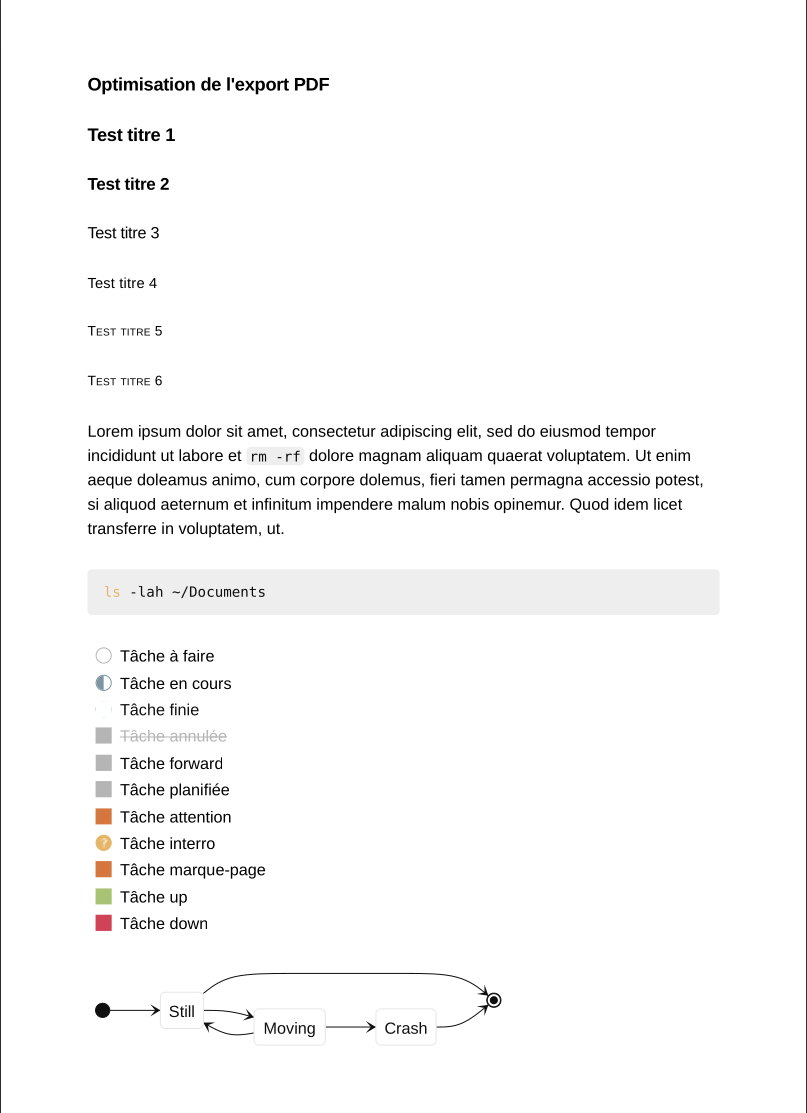

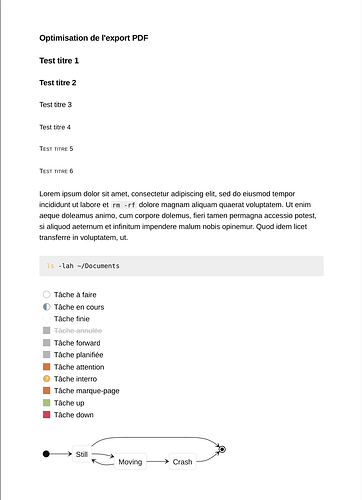

And here it is with my custom css
→ I tweaked acamedic-pdf-export to my liking and tried to find a way to render the alternate checkboxes
→ I managed to give the feeling I was searching for the rest of the document, but those coloured squares are tickeling my nerves ^^
The custom css file I’m using for now
/*
Desc: Style obsidian-notes to look like academic papers when exported as pdf.
Include this file in your obsidian snippets folder and activate within obsidian.
Auth: Nicklas Vraa
*/
@media print {
:root {
--body-font-family: "Latin Modern Roman","Newsreader Text", TimesNewRoman, "Times New Roman", Times, Baskerville, Georgia, serif;
--header-font-family: "Latin Modern Roman";
--code-font-family: Consolas, "Roboto Mono", monospace;
--code-inline-bg-color: #d7dae6;
--code-block-bg-color: #232634;
--code-block-border-color: #232634;
--code-block-font-color: #9396a5;
--link-color: rgb(71, 37, 150);
--body-font-size: 12pt;
}
/* Document-wide. ---------------------------------------------------------------------- */
@page { /* Page structure. */
margin-top: 4cm !important;
margin-bottom: 4cm !important;
margin-right: 2cm !important;
margin-left: 2cm !important;
}
a:link, a:visited, a { /* Links. */
color: rgb(80, 25, 183) !important;
text-decoration: none !important;
}
a[aria-label]::after {
display: inline !important;
content: " (" attr(aria-label) ")" !important;
color: slategray !important;
font-size: 80% !important;
font-family: var(--code-font-family);
}
/* Main body of text. ------------------------------------------------------------------ */
body {
tab-size: 4 !important;
--code-background: white !important;
--code-normal: black !important;
}
p {
font-family: "Latin Modern Roman" !important;
font-size: var(--body-font-size) !important;
text-align: justify !important;
line-height: 1.2 !important;
margin-top: 5px !important;
}
strong {
font-weight: bold !important;
}
/* Header styling and automatic numbering. --------------------------------------------- */
h1, h2, h3, h4, h5, h6 {
font-family: var(--header-font-family) !important;
color: black !important;
page-break-after:avoid;
page-break-inside:avoid;
margin-bottom: 0 !important;
}
h1 { /* Title. */
text-align: center !important;
font-size: 200% !important;
font-weight: bold !important;
margin-bottom: 20pt !important;
counter-reset: H2;
}
h2:before {
counter-increment: H2;
content: counter(H2) ". \0000a0";
}
h2 {counter-reset: H3;}
h3:before {
counter-increment: H3;
content: counter(H2) "." counter(H3) ". \0000a0";
}
h3 {counter-reset: H4;}
h4:before {
counter-increment: H4;
content: counter(H2) "." counter(H3) "." counter(H4) ". \0000a0";
}
/* Credits. ---------------------------------------------------- */
del { /* Credits, i.e. author information. */
font-family: var(--body-font-family) !important;
display: block !important;
text-align: center !important;
font-size: 80% !important;
text-decoration: none;
margin-top: 8px !important;
padding-bottom: 10px !important;
}
/* Code and math blocks. --------------------------------------------------------------- */
pre { /* background and border of block. */
background-color: #fff !important;
border-style: solid !important;
border-radius: 8px !important;
border-width: 1px 1px !important;
border-color: lightgray !important;
line-height: 1 !important;
}
code {
font-family: var(--code-font-family)!important;
font-size: 90% !important;
color: #292929 !important;
}
mjx-math {
font-size: 90% !important;
}
math-block {
page-break-before: avoid !important;
}
/* Figures. ---------------------------------------------------------------------------- */
svg, img {
display: block !important;
/* filter: invert(100%) !important; */
page-break-inside: avoid !important;
page-break-after: avoid !important;
margin: 10px auto 5px !important;
}
figcaption {
font-family: "Latin Modern Roman" !important;
text-align: center !important;
margin-bottom: 16px !important;
font-size: 80% !important;
}
/* Tables. ----------------------------------------------------------------------------- */
table, pre {
page-break-inside: avoid !important;
}
table {
font-family: Times !important;
font-size: 80% !important;
text-align: center !important;
margin: 10px auto 5px !important;
border-top: 1px solid #292929 !important;
border-bottom: 1px solid #292929 !important;
}
th { /* Table headers. */
color: black !important;
font-weight: normal !important;
border: none !important;
border-bottom: 1px solid darkgray !important;
padding: 2px 5px !important;
}
td {
border: none !important;
padding: 2px 5px !important;
}
/* Lists ------------------------------------------------------------------------------- */
/*TODO Trouver comment remettre les icônes*/
/* Horizontal separator. --------------------------------------------------------------- */
hr { /* Manual page-break using "---". */
border: none !important;
border-top: 0px solid lightgray !important;
page-break-after: always !important;
}
/* Additional settings. ---------------------------------------------------------------- */
blockquote {
display: block !important;
text-align: center !important;
font-size: var(--body-font-size) !important;
color: black !important;
border: none !important;
padding: 0px !important;
margin: 5px auto !important;
}
.mermaid { /* Inline diagrams. */
color: black !important;
}
}
