Good day everyone. I’d like to introduce you to my new plugin, currently in beta, Ultra Code Fence.

What it does

I love code fencing in Obsidian, but being markdown, it has to follow basic rules. And Obsidian plugins are all about going outside those rules.

As a developer I’ve used the ``` code fencing functionality a lot, but they’re limiting - you get the code, the whole code and nothing but the code.

And they’re totally unsuitable for presenting code output (where you have Prompts, commands, and output).

I found a plugin that did some of this at GitHub - almariah/embed-code-file, but sadly the developer is seemingly no longer supporting it. Initially I did a fork of his code and tried to modify it, but then I wanted more and more features and so I outgrew that plugin.

So, I started again, and behold, I give you Ultra Code Fence!

Some features include:

  • Pull in files from your vault - Reference a script or config file once and it stays in sync
  • Fold long blocks - Show the first N lines with a click to expand (great for lengthy functions you don’t always need to see)
  • Scroll instead of fold - Keep blocks at a fixed height with scrolling
  • Line numbers and zebra striping - Makes reading code much easier
  • Filter by line range or markers - Extract just the bit you care about (lines 50-80, or everything between // START and // END)
  • Style terminal output - Colour your prompts, commands, and output differently
  • Mobile ready - Works on mobile and desktop

Some examples

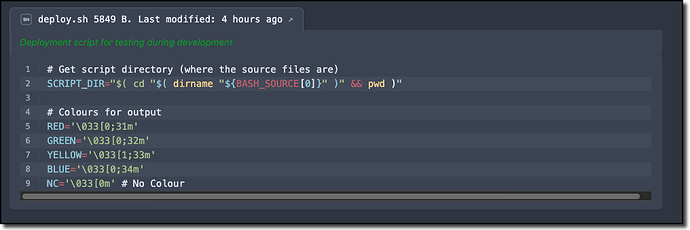

```ufence-bash
META:
  PATH: "vault://Assets/Scripts/ultra-code-fence/deploy.sh"
  DESC: "Deployment script for testing during development"
  TITLE: "{filename} {size:bytes}. Last modified: {modified:relative}"
RENDER:
  ZEBRA: true
  LINES: true
  FOLD: 20
```

image1007×519 44.7 KB

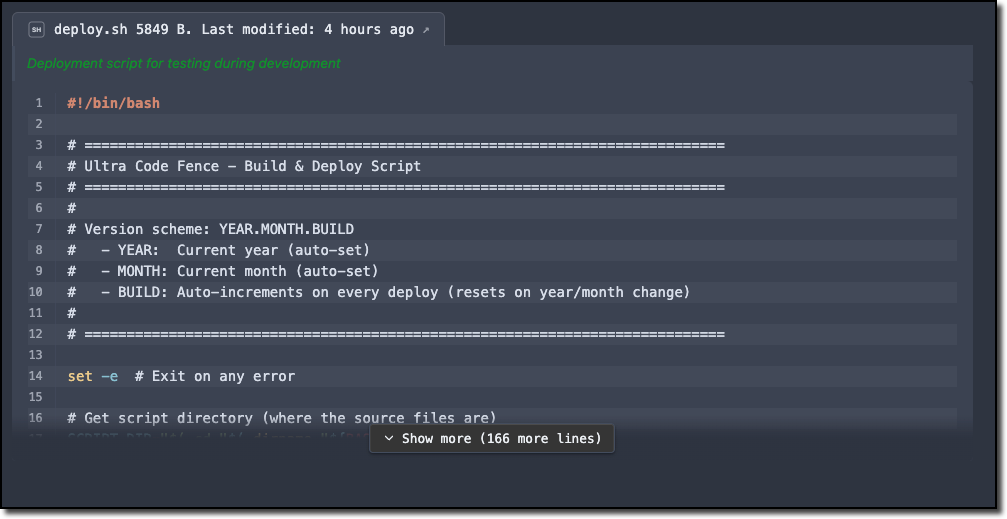

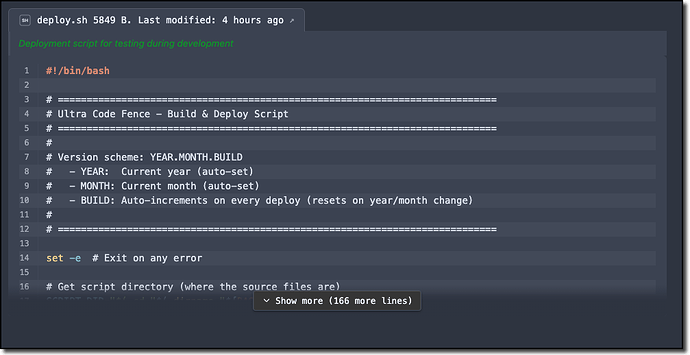

```ufence-bash
META:
  PATH: "vault://Assets/Scripts/ultra-code-fence/deploy.sh"
  DESC: "Deployment script for testing during development"
  TITLE: "{filename} {size:bytes}. Last modified: {modified:relative}"
RENDER:
  ZEBRA: true
  LINES: true
  FOLD: 20
FILTER:
  BY_LINES:
    RANGE: 16, 24
```

image1016×340 32.4 KB

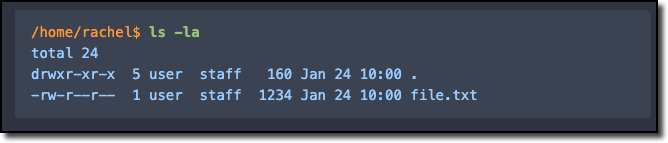

```ufence-cmdout
PROMPT: "^([/~][\\w/.-]*\\$ )(.*)"
RENDER:
  PROMPT:
    COLOUR: "#ff9933"
    BOLD: false
    ITALIC: false
  COMMAND:
    COLOUR: "#98c379"
    BOLD: true
    ITALIC: false
  OUTPUT:
    COLOUR: "#99ccff"
    BOLD: false
    ITALIC: false
~~~
/home/rachel$ ls -la
total 24
drwxr-xr-x  5 user  staff   160 Jan 24 10:00 .
-rw-r--r--  1 user  staff  1234 Jan 24 10:00 file.txt
```

image668×143 10.4 KB

Installing via BRAT

Since this isn’t in the community plugins yet, you’ll need BRAT:

  1. Install BRAT if you haven’t already
  2. Open BRAT settings → Add Beta plugin
  3. Paste: https://github.com/RachelAmbler/ultra-code-fence
  4. Click Add Plugin
  5. Enable Ultra Code Fence in your Community plugins list

Links

Feedback welcome - I’m still actively developing this and would love to hear what works and what doesn’t.
