Steps to reproduce
just paste these into editor
sequenceDiagram
participant Loop as EventLoop
participant PC as PCNode
participant VLink as VirtualLink
participant Dev as DeviceNode
Loop ->> PC: tick(now_us)
PC ->> VLink: write(CMD frame)
Loop ->> VLink: pump(now_us)
VLink ->> Dev: bytes arrive
Loop ->> Dev: tick(now_us)
Dev ->> Dev: parser.feed(bytes)
Dev ->> VLink: write(RSP/EVT/DATA)
Loop ->> VLink: pump(now_us)
VLink ->> PC: bytes arrive
Loop ->> PC: tick(now_us)
PC ->> PC: parser.feed(bytes)
Did you follow the troubleshooting guide? [Y/N]
yes
Expected result
Actual result

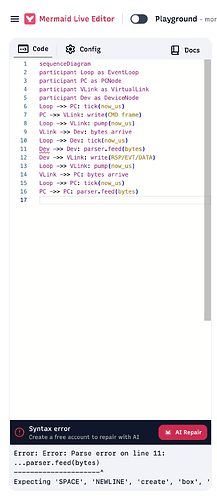

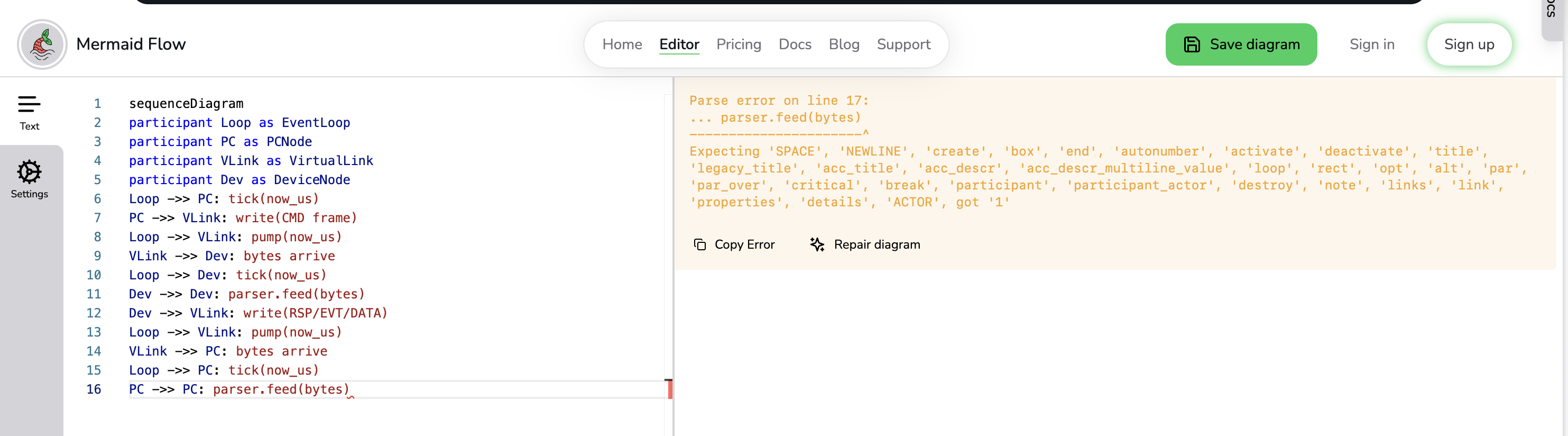

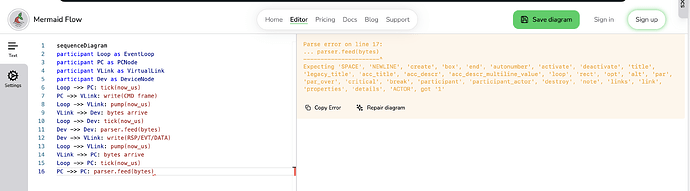

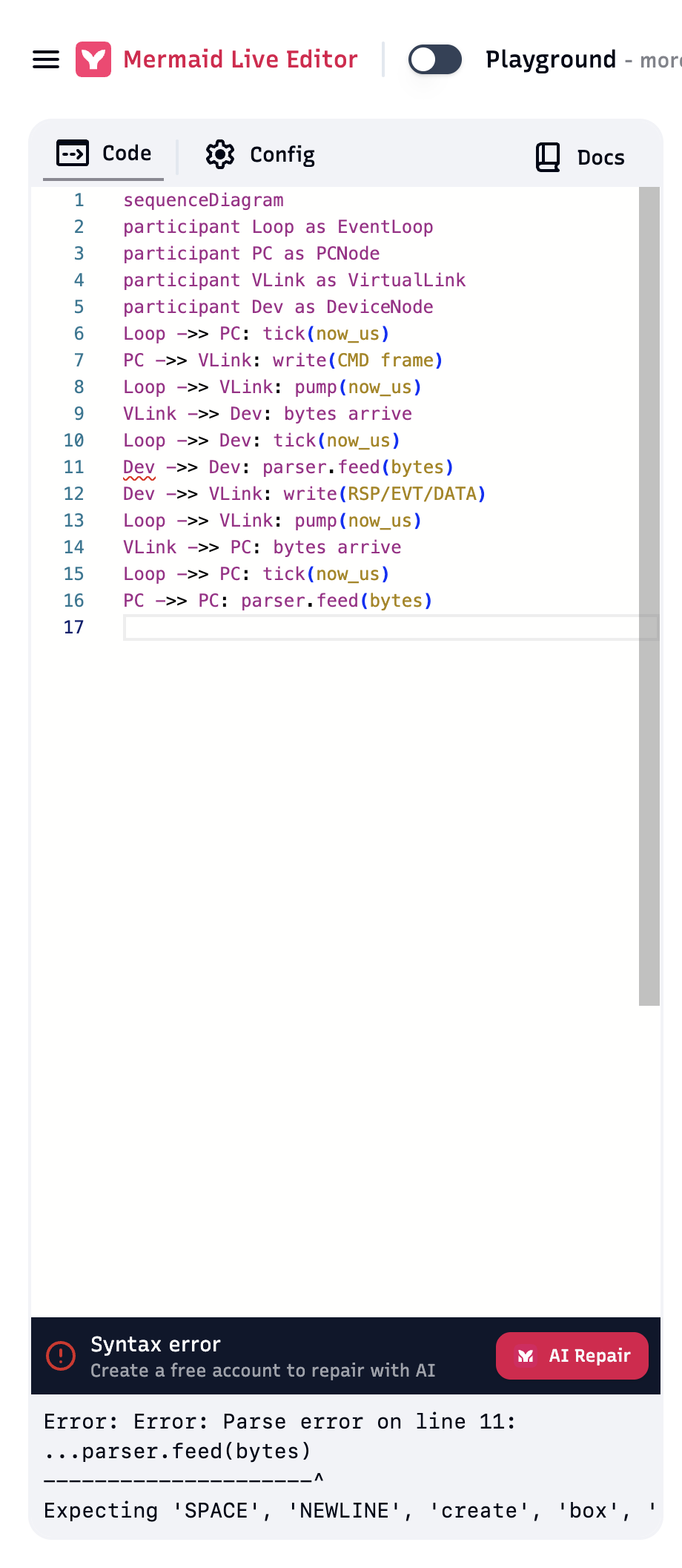

Error parsing Mermaid diagram!
Parse error on line 18:
… parser.feed(bytes)
----------------------^
Expecting ‘SPACE’, ‘NEWLINE’, ‘create’, ‘box’, ‘end’, ‘autonumber’, ‘activate’, ‘deactivate’, ‘title’, ‘legacy_title’, ‘acc_title’, ‘acc_descr’, ‘acc_descr_multiline_value’, ‘loop’, ‘rect’, ‘opt’, ‘alt’, ‘par’, ‘par_over’, ‘critical’, ‘break’, ‘participant’, ‘participant_actor’, ‘destroy’, ‘note’, ‘links’, ‘link’, ‘properties’, ‘details’, ‘ACTOR’, got ‘1’
Environment
SYSTEM INFO:Obsidian version: v1.11.4
Installer version: v1.10.6
Operating system: Windows 11 Pro for Workstations 10.0.26200
Login status: not logged in
Language: en
Insider build toggle: off
Live preview: on
Base theme: adapt to system
Community theme: none
Snippets enabled: 0
Restricted mode: off
Plugins installed: 8
Plugins enabled: 8
1: Table Extended v1.6.1
2: Automatic Table Of Contents v1.7.3
3: Export To TeX v0.4.2
4: Remotely Save v0.5.25
5: Find Orphaned Images v1.1.3
6: Image Converter v1.3.18
7: Omnisearch v1.27.3
8: AI image analyzer v0.2.0
RECOMMENDATIONS:
Community plugins: for bugs, please first try updating all your plugins to latest. If still not fixed, please try to make the issue happen in the Sandbox Vault or disable community plugins.
