What I’m trying to do

I have a very low knowledge and understanding level in obsidian, css or other…

I’m searching for the easiest way to have colored underlining in the body of my document.

Things I have tried

In another topic in this forum I have been advised to « look at a plugin like GitHub - PKM-er/obsidian-editing-toolbar: An obsidian toolbar plugin, modified from the Cmenu plugin »

I already have this editing toolbar plugin but in its basic functionnalities, color underlining is not customizable.

Thanks for your replies

2

Unless there’s a plugin I’m unaware of, your best bet is using span classes and CSS. In your note:

<span class="uYellow">hey there I'm yellow</span>

<span class="uGreen">hey there I'm green</span>

and the CSS:

.uYellow {
  text-decoration: underline;
  text-decoration-color: var(--color-yellow); }

.uGreen {
  text-decoration: underline;
  text-decoration-color: var(--color-green); }

Add as many as you like. The uYellow parts can be any text you would like to use.

Screenshot 2023-06-24 at 18.45.04
Screenshot 2023-06-24 at 18.45.041386×664 43.4 KB

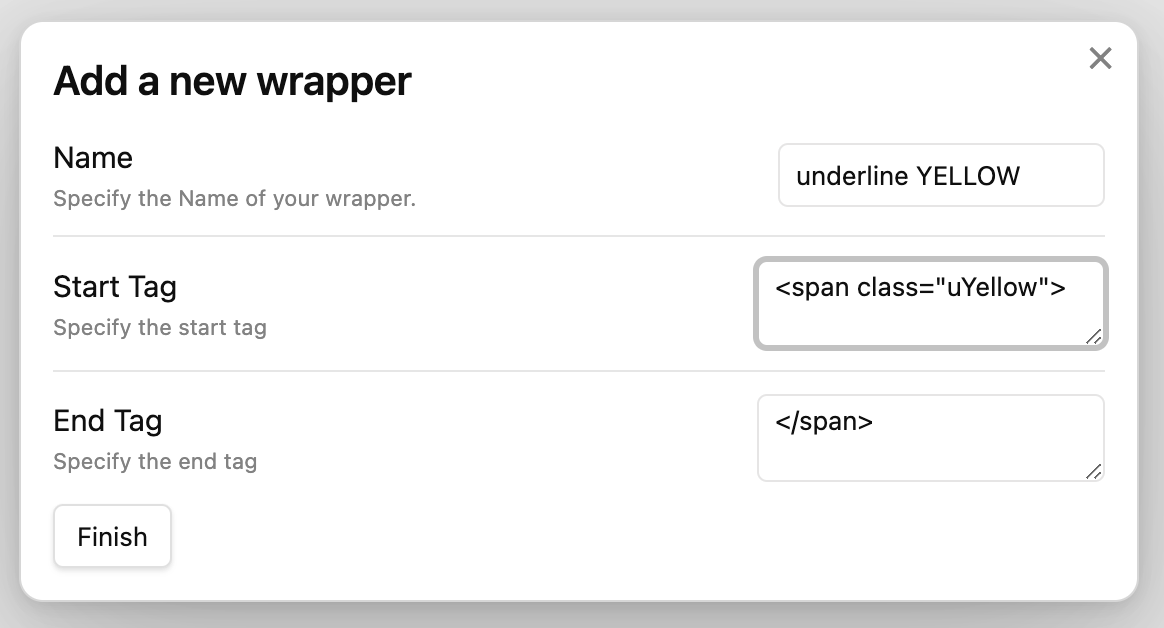

And you could use the plugin wrap with shortcuts to make commands and hotkeys for wrapping the selected text in the span classes:

Screenshot 2023-06-24 at 18.44.22
Screenshot 2023-06-24 at 18.44.221164×628 24.9 KB

3

Thank you for your reply.
Looks not difficult.

Here I am at the first step, try to get manually the colored underlyning, as you advised:

  • in my note I have written the span classed example :
<span class="uYellow">hey there I'm yellow</span>
  • in my usual CSS file (currently functional with another CSS code) your advised CSS code
.uYellow {
  text-decoration: underline;
  text-decoration-color: var(--color-yellow); }

At now this doesn’t work.
Where could the problem come from ?

4

Just to be clear: this won’t work in source mode, but works fine in live preview and reading modes.

It shouldn’t matter but, you could try to put these color classes in a different file. Call it cssClasses.css or something. Also, what theme are you using?

5

Ok in a separate file it’s working, I guess in the file I previously used the current code above yours was preventing yours to be applied.
I will try the wrapping step now …

6

It’s possible something in the first file wasn’t closed properly… a missing } or double }}.

Something like that will probably cause rules under it to not work.
