Display Grid CSS doesn't work on PDF export

[lajawi]

What I’m trying to do

I have made my own CSS with which I can create a simple grid within a callout (which you can find on my GitHub: obsidian-snippets/callout-grid.css at main · lajawi/obsidian-snippets · GitHub). I expected the custom styled callouts to export correctly, but all grid styling is lost (aka display: grid; doesn’t seem to work for PDF exports).

Things I have tried

I have tried other’s grid solutions too, like for example this one: Obsidian Grid Callouts · joschua.io, but even then no luck.

I tried other exporters beside the default one too, for example: GitHub - l1xnan/obsidian-better-export-pdf: Obsidian PDF export enhancement plugin · GitHub

[lajawi]

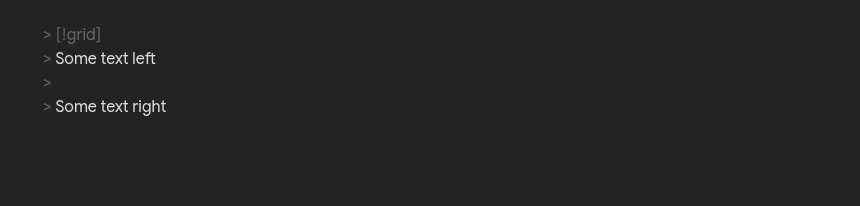

Source mode

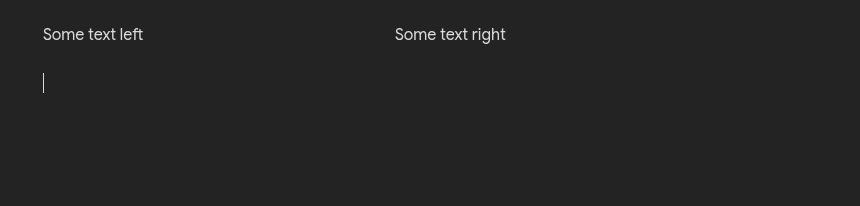

Live preview

Reading view

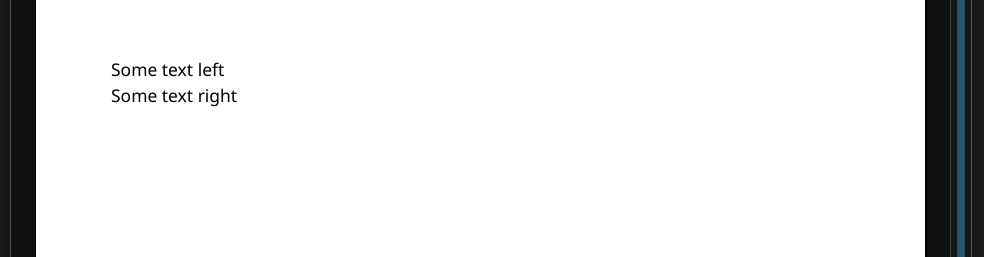

Exported PDF

Goal

Exporting a PDF that has the same layout as in live preview and reading view.

[ariehen]

Reading view is going to be closest to the PDF. If it’s not matching when exported you’ll likely need a CSS export snippet (@media print, .print).

Last I checked efemkay’s MCL multi column layout carried over to the pdf export. You could have a look at that css to see if they didn’t anything special for export.

[lajawi]

@ariehen

Last I checked efemkay’s MCL multi column layout carried over to the pdf export

Where can I find that one?

[lajawi]

@ariehen

efemkay’s MCL multi column layout

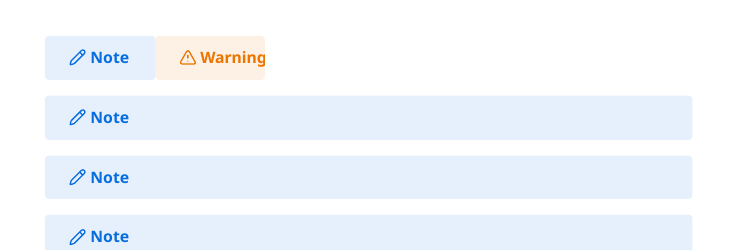

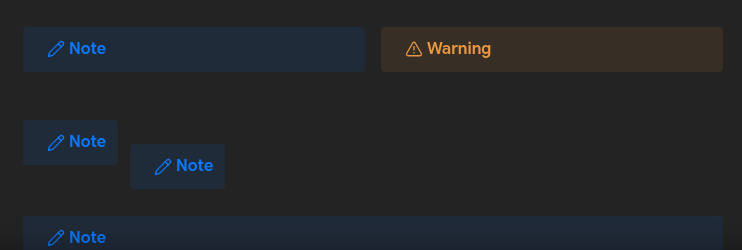

efemkay’s solution doesn’t work completely as expected in exports either (left is live preview, right is exported PDF):

What I did notice however, is that they use display: flex; instead of display: grid;, except if you set a specific column count with provided metadata “classes”. If you do that, the exact same behaviour can be observed as in my OP.

[ariehen]

Interesting.

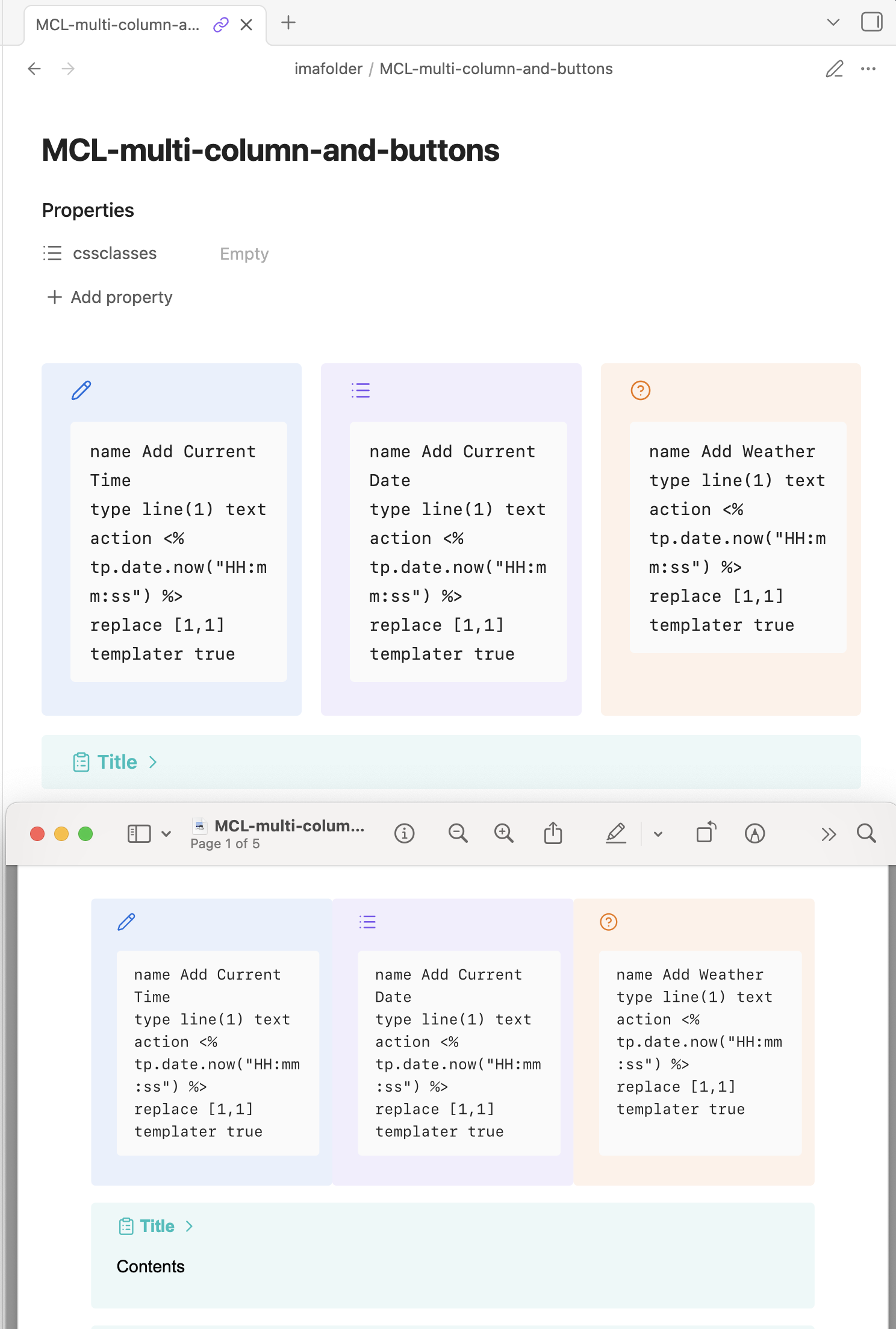

I don’t use the snippet myself and the export could use some padding/margins, but it looks more-or-less working on my end in a pdf.

[lajawi]

And this is the multi-column type? Because that one works mostly too on my end, but it’s based on display: flex; instead of display: grid;.

[lajawi]

Should I report it as a Bug reports ?

[ariehen]

Ah, pardon. I just looked at my MCL test note quickly. It is using the > [!multi-column] callout only.

---

@lajawi

Should I report it as a Bug reports ?

With the exception of something broken with a default theme variable, custom CSS isn’t usually accepted in bug reports.

[Jopp]

As ariehen pointed out already,
You’ve to create extra rules for printing.

@media print {

.print .your-rule {
 /* declaration */
}

}

I guess efemkay’s code snippet was not optimized for printing.
Did you resolve meanwhile? If you need some help, let me know.

[lajawi]

I did try just duplicating all the rules and encasing it in the @media print selector, to no avail.

I see you’re using the cssclass print. I suppose it’s not trivial to inspect the printed structure?

[Jopp]

@lajawi

I did try just duplicating all the rules and encasing it in the @media print

Most of the time you can re-use same rules, but not always. Don’t forget to precede any of your rules under @media print with .print

You’ve to go back and forth, like

1. write your css rules/declarations
2. Do a PDF export
3. Adjust your css rules/declarations
4. Print as PDF
5. Etc.

[lajawi]

I’ll try this, but the lack of inspecting will definitely make it tedious, especially if I don’t even know display: grid; is supported at all by Obsidian for PDF export.

[Jopp]

You say it… it is indeed tedious but the only way to make the default print settings more useable.
I didn’t give you more info till now because I’m busy. I’ll check your code but can’t guarantee a quick feedback.

One of these days the devs of Obsidian should care to update/curate existing features instead to add new features in short development cycles. Please.

[lajawi]

@Jopp

Don’t forget to precede any of your rules under @media print with .print

Why should this be necessary? This only makes the selector more specific, which may exclude elements if anything, no?

[lajawi]

Okay, I had another chat in the Discord server, and turns out you just need to add !important to display: grid;: display: grid !important;.

I’ll let this stay here for anyone else in the future confused!
